Product Information
Name: Portable 6 antennas cell phone jammer
Model: JYT-990
Color: Black
Basic Specifications
Jam Signal Type:
1: JYT-CGW990 Mobile Phone2G.3G .GPSL1.WIFI
2:JYT-CNF990 Mobile Phone 2G.3G 4G
3:JYT-CNG990 Mobile Phone 2G.3G. 4G.GPSL1
4:JYT-CNW990 Mobile Phone 2G.3G.4G WIFI.
5:JYT-CPJ990 Mobile Phone 2G.3G.GPSL1.WIFI.LOJACK
Output Power:Total 3.6W,0.6W each band
Jam Radius:2-20meters
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator, Build-in 1 cooling fan
Working Time:Continue working 1.5 Hours
Product Size:133x 75x 35 mm(not Include Antenna)
Product Weight: appr.0.75kg

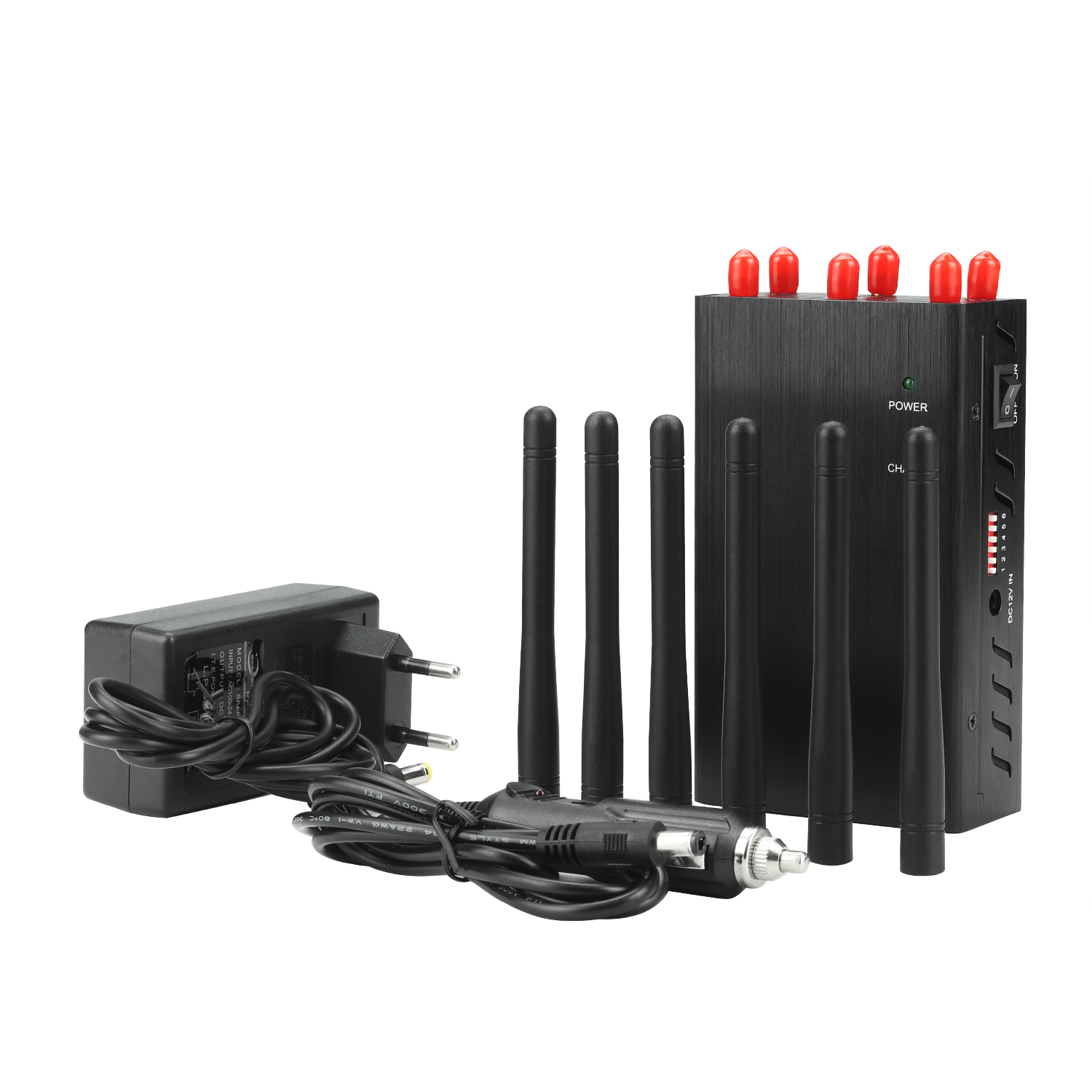

Package Contents:Jammer Host x 1, AC Charger x 1, Omni-antenna x6, DC12V car charger x1
Advantages
1.6 Bands 3.6W with Ni-Mh battery 4000Mah, Working 1.5 Hours Support use while battery charging.
2.Shielding radius: (2-20) meters at -75dBm with high gain omni antennas
3.With DIP switch, separate switch for each band, accompanied with a working LED light
4.Could be used in car directly, with car charger and AC charger
5.Inside cooling fans and Bigger heatsink design ensure the device to work continuously
Specifications:
Cover interface standards:
JYT-CGW990
Band 1:CDMA:850 to 960MHz
Band 2:GSM: 925 to 960MHz
Band 3:DCS&:PCS: 1,805 to 1990MHz
Band 4:3G: 2,110 to 2,170MHz
Band 5:Wi-Fi: 2,400 to 2,500MHz
Band 6: GPSl1:1570 to 1580MHz
JYT-CNF990
Band 1:CDMA:850 to 960MHz
Band 2:GSM: 925 to 960MHz
Band 3:DCS&:PCS: 1,805 to 1990MHz
Band 4:3G: 2,110 to 2,170MHz
Band 5:4G LTE: 725 to770MHz(American standard) Or 790 to 826MHz (European standard)
Band 6: 4G Wimax 2345 to 2400MHz (American standard) Or 2620 to 2690MHz (European standard)
JYT-CNG990
Band 1:CDMA&GSM:850 to 960MHz
Band 2DCS&:PCS: 1,805 to 1990MHz
Band 3:3G: 2,110 to 2,170MHz
Band 4:4G LTE: 725 to770MHz(American standard) Or 790 to 826MHz (European standard)
Band 5: 4G Wimax 2345 to 2400MHz (American standard) Or 2620 to 2690MHz (European standard)
Band 6: GPSl1:1570 to 1580MHz
JYT-CNW990
Band 1:CDMA&GSM:850 to 960MHz
Band 2DCS&:PCS: 1,805 to 1990MHz
Band 3:3G: 2,110 to 2,170MHz
Band 4:4G LTE: 725 to770MHz(American standard) Or 790 to 826MHz (European standard)
Band 5: 4G Wimax 2345 to 2400MHz (American standard) Or 2620 to 2690MHz (European standard)
Band 6: Wi-Fi: 2,400 to 2,500MHz
JYT-CPJ990
Band 1:CDMA&GSM:850 to 960MHz
Band 2DCS&:PCS: 1,805 to 1990MHz
Band 3:3G: 2,110 to 2,170MHz
Band 4:GPSl1:1570 to 1580MHz
Band 5: LOJACK:135 to 174MHz
Band 6: Wi-Fi: 2,400 to 2,500MHz
1.ODM and OEM orders are welcome
2.Total output power: 3.6W ,Small size design,each bands can adjust to ON or OFF power
3.Jamming range: up to 20m, the jamming radius still depends on the strength signal in given area
3.External Omni-directional antennas all the TX frequency covered down link only
5.Power supply: 50 to 60Hz, 100 to 240V
6.With AC adapter (AC100-240V-DC12V),7.4v 4000Mah battery
Application:
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
o For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Warranty: one year from delivery date
OEM Customized Service
Customized for special frequency band , GPSL2 L3 L4,5.2G.5.8G, etc.
Silkscreen OEM service can be offered
For more details,please do not hesitate to send us an enquiry.
|
|
Portable 6 antennas cell phone jammer Images
|
